Optical Fiber Attenuator SC / UPC Connector Male To Female Singlemode
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction.
specification:
| Fiber Connector | LC/SC/FC/ST |
| Ferrule Type | Zirconia Ceramic |
| Transfer Mode | Singlemode(9/125)&multimode(50/125 or 62.5/125 and test Wavelength) |
| Connector Gender | Fixed Female to Female |
| Attenuation | 1~25dB |
| Attenuation Accuracy | 1-9dB ±0.5, 10-25dB ±10% |
| Return Loss | >50dB |
| Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mw |
| Operating Temp Range | -40~85°C |
| Humidity | 95%RH |
| Storage Temp Range | -40~85°C |

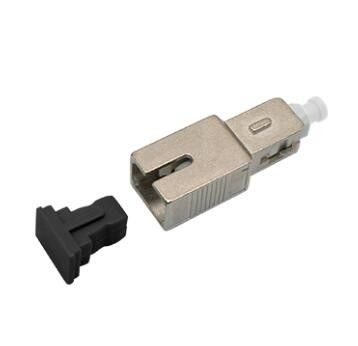

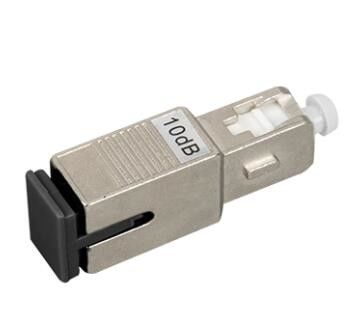

Products Pictures :
Applications:
1.Data processing networks
2.Local Area Networks(LANs)
3.Telecommunication networks
4.Premise Installations
5.elecommunication networks
