원래 장소:
중국
인증:
CE Rohs SGS ISO
모델 번호:
ST UPC 6dB 광섬유 감쇠기
저희와 연락
Attenuator Fiber Optic ST SM Male To Female Caremic Operating Wavelength 1310/1550±10
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful.
Specification:
| Fiber Connector | LC/SC/FC/ST |
| Ferrule Type | Zirconia Ceramic |
| Transfer Mode | Singlemode(9/125)&multimode(50/125 or 62.5/125 and test Wavelength) |
| Connector Gender | Fixed Female to Female |
| Attenuation | 1~25dB |
| Attenuation Accuracy | 1-9dB ±0.5, 10-25dB ±10% |
| Return Loss | >50dB |
| Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mw |
| Operating Temp Range | -40~85°C |
| Humidity | 95%RH |
| Storage Temp Range | -40~85°C |

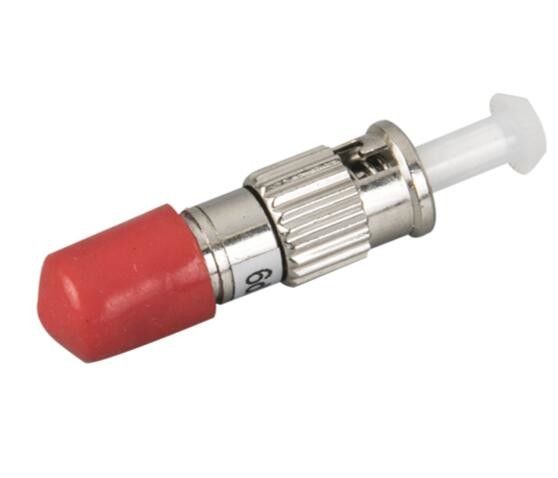

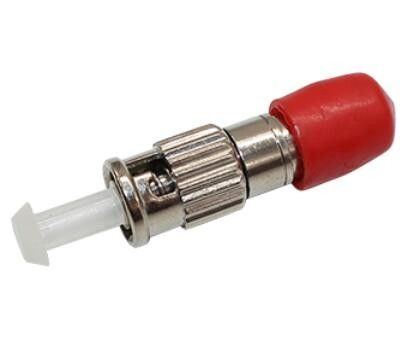

Products Pictures:
Application:
1. Industrial, Medical & Military
2. CATV, Metro
3. Active Device Termination
