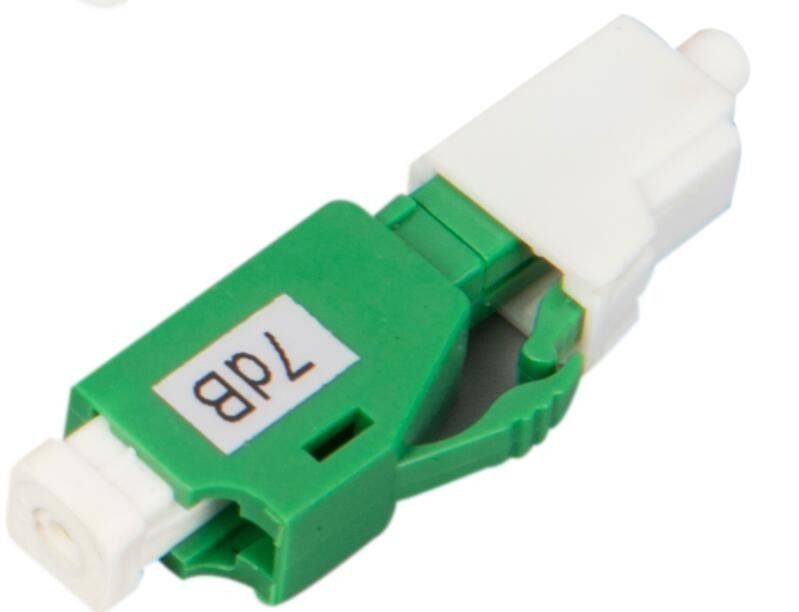

Fiber Optic Attenuator Single Mode LC APC 7dB Polarization Dependent Loss: ≤0.2dB
The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators. Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system.
specification:
| Fiber Connector | LC/SC/FC/ST |
| Ferrule Type | Zirconia Ceramic |
| Transfer Mode | Singlemode(9/125)&multimode(50/125 or 62.5/125 and test Wavelength) |
| Connector Gender | Fixed Female to Female |
| Attenuation | 1~25dB |
| Attenuation Accuracy | 1-9dB ±0.5, 10-25dB ±10% |
| Return Loss | >50dB |
| Polarization Dependent Loss | ≤0.2dB |
| Max Optical Input Power | 200mw |
| Operating Temp Range | -40~85°C |
| Humidity | 95%RH |
| Storage Temp Range | -40~85°C |
Products Pictures:
Applications:
1. Fiber optical telecommunication system
2. Fiber optical CATV
3. Fiber optical sensor
4. Testing equipment
