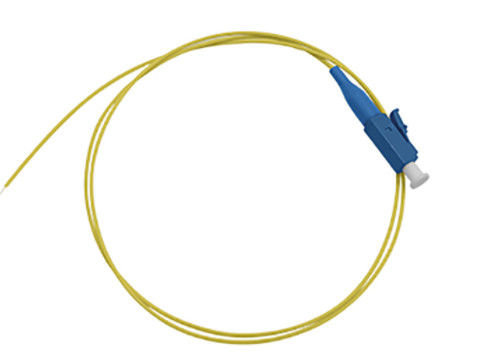

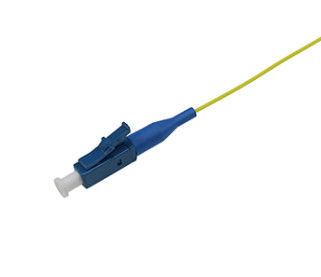

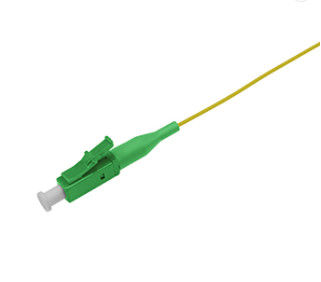

Fiber Optic Pigtail LC Apc / Upc Optical Sm Simplex FTTH PVC LSZH
Product description:
Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction
Fiber Patch Cable Options:
specification:
|
Fiber Mode
|
9/125 μm
|
|||
|
Fiber Count
|
Simplex
|
|||
|
Fiber Grade
|
G.652D/G.657A2
|
|||
|
Cable Diameter
|
0.9 mm
|
|||
|
Cable Jacket
|
PVC/LSZH
|
|||
|
Parameter
|
LC Connector
|
|||
|
SM
|
MM
|
|||
|
PC
|
UPC
|
APC
|
PC
|
|
|
Insertion loss
|
≤0.25dB
|
≤0.25dB
|
≤0.25dB
|
≤0.25dB
|
|
Return loss
|
≥50dB
|
≥55dB
|
≥60dB
|
/
|
|
operating wavelength
|
1310nm, 1550nm
|
850nm, 1300nm
|
||
|
Ferrule Concentricity
|
≤1um
|
≤4um
|
||
|
Wavelength
|
1310 nm/1550 nm
|
|||
|
Durability
|
>1000 Times
|
|||
|
Working temperature
|
-40~85°C
|
|||
|
Storage temperature
|
-40~85°C
|
|||
Application:
1. Telecommunication Networks
2. CATV Networks
3. Active Device Termination
4. Local Area Networks
