Fiber Optic Pigtail Single Mode E2000 / APC FTTX Network Application OEM
Product description:
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Fiber Patch Cable Options:
specification:
|
Parameters
|
SC,LC,FC,E2000
|
ST,MU
|
MTRJ
|
||||
|
SM
|
MM
|
SM
|
MM
|
SM
|
MM
|
||
|
UPC
|
APC
|
UPC
|
UPC
|
UPC
|
UPC
|
UPC
|
|
|
Work Wavelength (nm)
|
1310,1490,1550
|
850,1300
|
1310,1490,1550
|
850,1300
|
1310,1490,1550
|
850,1300
|
|
|
Insertion Loss(dB)
|
≤0.25
|
≤0.20
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
|
Return Loss(dB)
|
≥55
|
≥65
|
≥35
|
≥50
|
≥35
|
≥50
|
≥35
|
|
Repeatability(dB)
|
≤0.10
|
||||||
|
interchangeability(dB)
|
≤0.20
|
||||||
|
Plug Testing(time)
|
≥1000
|
||||||
|
Tensile Strength(N)
|
0.9mm(9N);2.0mm(70N);3.0mm(75N)
|
||||||
|
Durability(dB)
|
≤0.20
|
||||||
|
Operation Temperature(°C)
|
-40~+85
|
||||||
|
Storage Termperature(°C)
|
-40~+85
|
||||||

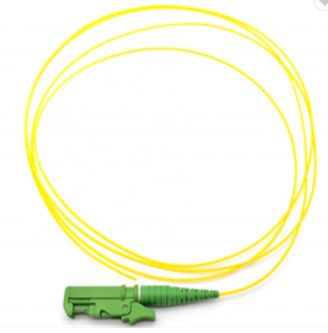

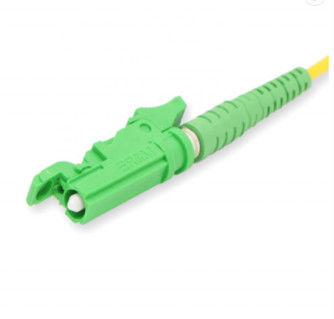

Products Pictures
Application:
Shipping:
