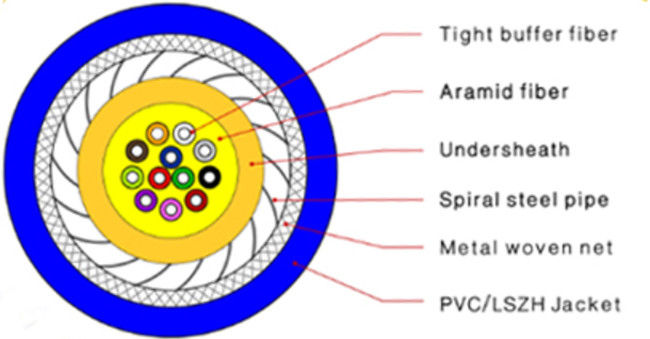

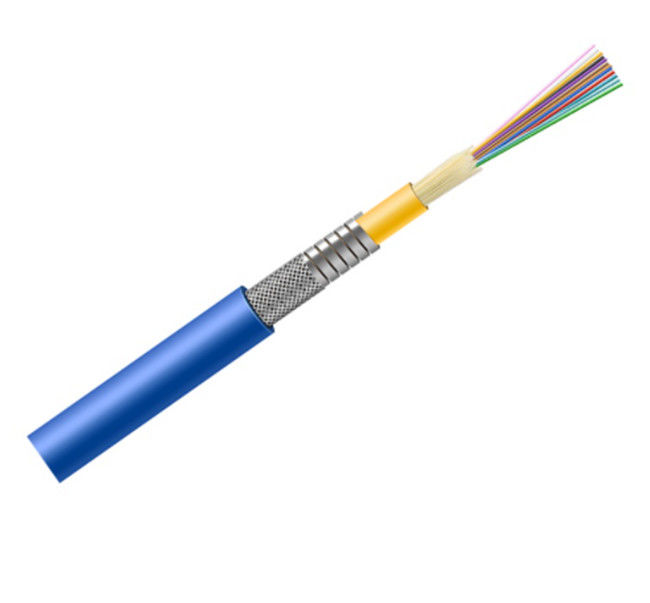

24/48/72 Core Multimode Multi Strand Single Core Spiral Steel Indoor Armored Optical Fiber Cable
Description:
Mini diameter SUS spring tube reinforced ensures good cursh resistance to 3000N;
Dupon Kelvar strengthened brings good tensile strength of 300N above;
Outer jacket complies with UL,RoHS Light, flexible and easy to bend;
Features:
Specification:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| 1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| 1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| 1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | 850 | ≥500MHZ·km | ≥200MHZ·km | ||
| 1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
