Optical Fiber Pigtail SC/UPC Optical Pigtail 1M Optic Cable 12 Cores
Product description:
Fiber Optic Pigtail is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
Features:
· High precision alignment
· Comply with ROSH
· Material comply with requirement of UL 94V-0
· Compact and precision housing for retenion
specification:
| Technical specification: | ||||
| Fiber Type | SM | MM | ||
| Cable Diameter(mm) | Ф0.9,Ф2.0,Ф3.0 | |||
| End-face Finishing | PC | UPC | APC | PC |
| Insertion Loss(dB) | ≤0.30 | |||
| Return Loss(dB) | ≥50 | ≥55 | ≥60 | ≥28 |
| Operating Wavelength(nm) | 1310；1550 | 850 | ||
| Exchangeability(dB) | ≤0.20 | |||
| Repeatability(dB) | ≤0.10 | |||
| Operating Temperature(℃) | -40 ～ +75 | |||
| End Face Geometry | ROC:10-25(PC/UPC) 5-12(APC) | |||
| Offset::0-50um | ||||
| Fiber Height: -100 to +100nm | ||||
| Angle:8±0.3(APC) | ||||

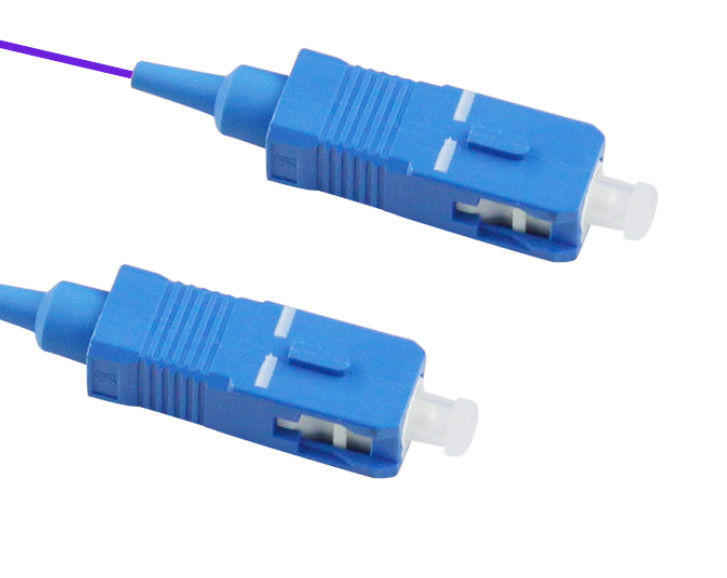

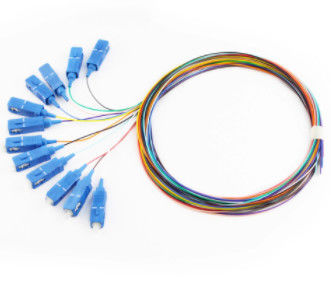

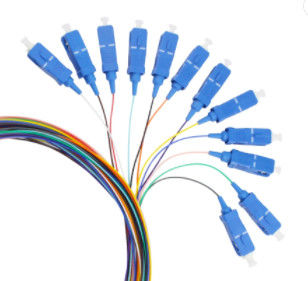

Products Pictures
Application:
1. Telecommunication Networks
2. CATV Networks
3. Active Device Termination
4. Local Area Networks
