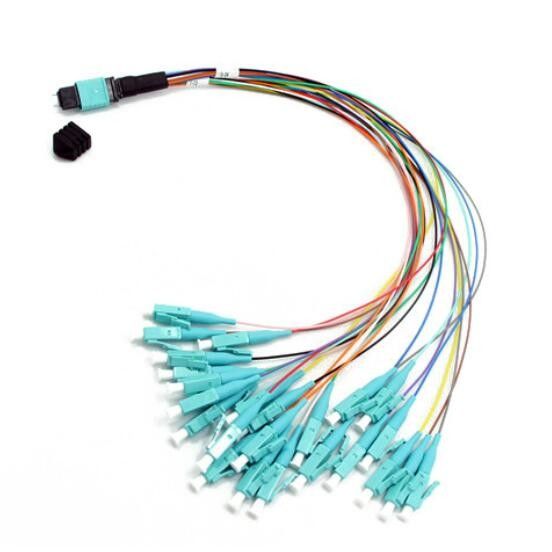

MPO Patch Cable OM3 24 Core MM MPO Male - LC Fiber 0.9mm Fanout Patch Cables FTTH
Description:
MPO trunk cables are available with 24F,48F,60F,72F ,96F,144F.Support speeds up to 10/40/100Gbps data center solutions. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion low for demanding high speed networks where power budgets are critical.
MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications:
|
Spec items.
|
Single mode (APCpolished)
|
Multimode (PC Flat polish)
|
|
Insertion loss (MPO)
(IEC 61300-3-34) |
Standard MPO:≤0.75dB(max), ≤0.35dB(Typical)
Elite MPO:≤0.35dB(max), ≤0.20dB(Typical) |
Standard MPO:≤0.6dB(max), ≤0.35(Typical)
Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical) |
|
Return loss(MPO)
|
≥60dB(8degree polishing)
|
≥25dB
|
|
Durability
|
<0.3dBtypical change, 200 matings
|
|
|
Interchangeability
|
≤0.2dB
|
|
|
Tensile strength
|
>70N
|
|
|
Operating Temperature
|
-40 to + 85°C
|
|
FAQ:
1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality.
2. What about the lead time?
A:Sample needs 3 to 5 days, mass production time needs 1-2 weeks
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
5: What is your quality control for your fiber optic product ?
1) Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2)Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3)Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
