원래 장소:
중국
인증:
ISO
모델 번호:
1u 랙 마운트 빈 ODF 파이버 패치 패널
저희와 연락

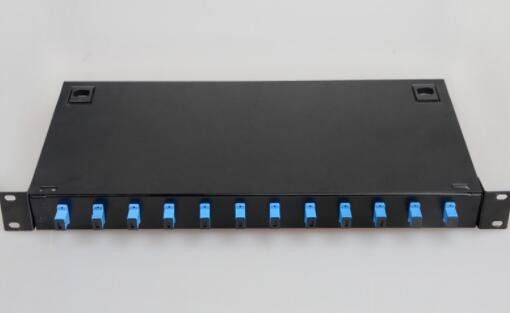

1u Fiber Optic Patch Panel Rack Mount Empty Fiber Terminal ODF Max Capacity SC 12 / LC 24
Description:

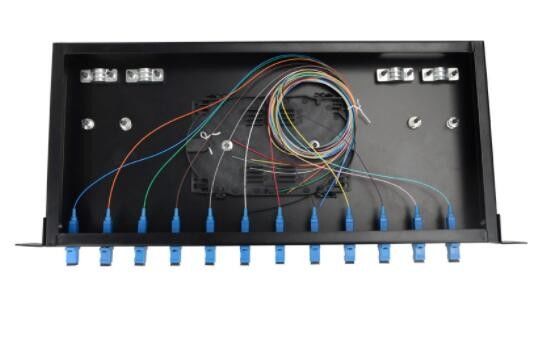

This patch panel is a 19 inch drawer box of an sample design. It can be connected with FC,SC,ST,LC adapters and pigtails or trunk fanouts. There is a splicy tray of 24 fibers in the middle of the panel. The patch panel is usually mounted in the fiber optical cabinet to manage and distribute fiber cables.It apply to branch connection of optical cable termination.
Specification:
| Product name | Fiber Patch Panel | Connector | SC/UPC |
| color | black color | Packing Size | 435*200*50 mm |
| Ports | 12 | Product Height | 1 U |
| Max Capacity | SC 12/LC 24 | Material | Cold rolled plate |
| Installation Type | 19 inch Rack mounted | G. weight | 1.8kg |
