원래 장소:
중국
인증:
CE Rohs SGS ISO
모델 번호:
실내 배포 광 케이블
저희와 연락

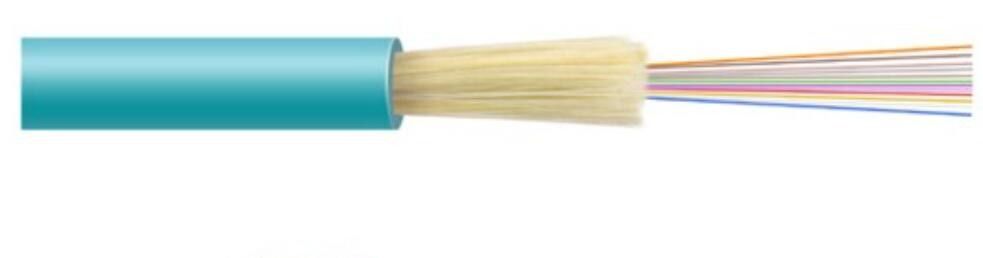

12 Core Indoor Distribution Optical Fiber Cable Cctv Cable LSZH / PVC Outer Sheath
Description:

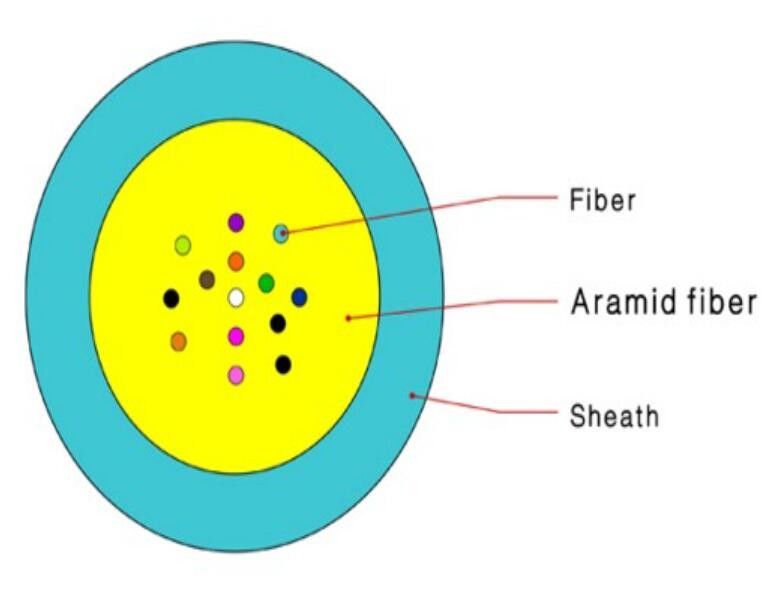

Aramid yarn strength member ensure high tensile strength and long term stability in tranmission.
Small outer diameter, light weight, flame-retardant, easy to strip, low attenuation, highly soft. Direct splicing between tight buffered cables and need no tie-in box or pigtail.
Specification:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| 1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| 1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| 1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | 850 | ≥500MHZ·km | ≥200MHZ·km | ||
| 1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
