Indoor Armored Fiber Optic Cable Indoor Fiber Optic Cable PVC Or LSZH Inner Sheath
Description:

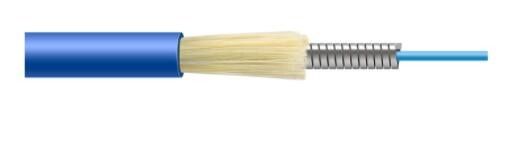

The structure of the cable is put 900μm or 600μm tight buffer fibers with aramid yarn, then covered with a
layer of PVC or LSZH inner sheath, then wrapped a layer of flat stainless steel wires and add a layer of woven stainless steel wire, finally complete with PVC or LSZH sheath.
Specification:
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) |
850nm | ≤3.0dB/km | ≤3.0dB/km | ||
| 1300nm | ≤1.0dB/km | ≤1.0dB/km | |||
| 1310nm | ≤0.36dB/km | ≤0.36dB/km | |||
| 1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | 850 | ≥500MHZ·km | ≥200MHZ·km | ||
| 1300 | ≥1000MHZ·km | ≥600MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength | ≤1260nm | ≤1480nm | |||
