원래 장소:
중국
인증:
Rohs
모델 번호:
MPO-LC 패치 코드
저희와 연락

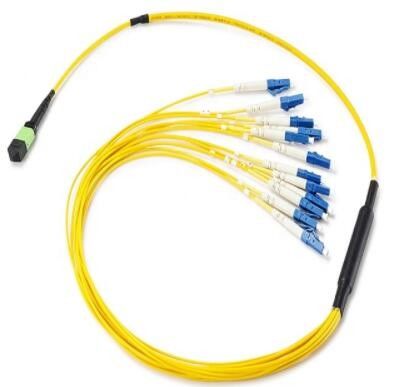

Mpo Fiber Optic Connector MPO / MTP - LC Fiber Optic Patch Cable 12 Core Fiber Yellow
Description:
MPO/MTP to LC Fan Out Cable is offered in all fiber types as standard 12 to 144 core versions using a compact and rugged Micro Cable structure.
The application of MPO fiber patch cords between different buildings of the enterprise, LAN wiring, optical active equipment,optical link interconnection, communication in the base station, wiring in the distribution box, residential quarters, industrial park machine room, commercial building machine room, optical signal connection in dense buildings Wiring system optical fiber communication system, cable TV network, telecommunications network local area networks (LANs), wide area networks (WANs), FTTx.
Specifications:
|
MPO/MTP Termination
|
||||
|
Type
|
Single mode(APC polish)
|
Multi mode(PC polish)
|
||
|
Fiber count
|
8,12,24,etc.
|
8,12,24,etc.
|
||
|
Fiber type
|
G652D,G657A1
|
OM1,OM2,OM3,OM4 .
|
||
|
Maximum Insertion Loss
|
Standard
|
Elite Low Loss
|
Standard
|
Elite Low Loss
|
|
≤0.75dB
|
≤0.35dB
|
≤0.75dB
|
≤0.35dB
|
|
|
Return Loss
|
≥55dB
|
N/A
|
||
|
Working Temperature
|
-40℃~80℃
|
-40℃~80℃
|
||
|
Test Wavelength
|
1310nm
|
850nm
|
||
order information :
● Various combinations of connector, cable types and length
● Insertion loss type available in Standard, Elite / Low Loss
● Fiber count available in 6, 8, 12, and 24
● MTP/MPO connector type available in Male and Female
● Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
● Fanout length available in 0.5m, 1m,
