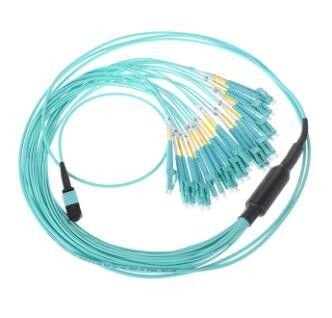

MPO Patch Cable 24 Core MPO To LC OM3 Fiber Optic Patch Cord Telecommunication Networks
Description:
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores
versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow. These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion low for demanding high speed networks where power budgets are critical.
MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Specifications:
|
Type
|
Single Mode
|
Single Mode
|
Multi Mode
|
|||
|
(APC Polish)
|
(UPC Polish)
|
(PC Polish)
|
||||
|
Fiber Count
|
8,12,24
|
8,12,24
|
8,12,24
|
|||
|
Fiber Type
|
G652D,G657A1
|
G652D,G657A1
|
OM1,OM2,OM3
|
|||
|
Maximum Insertion Loss
|
Elite
|
Standard
|
Elite
|
Standard
|
Elite
|
Standard
|
|
Low Loss
|
Low Loss
|
Low Loss
|
||||
|
≤0.35 dB
|
≤0.75dB
|
≤0.35 dB
|
≤0.75dB
|
≤0.35 dB
|
≤0.60dB
|
|
|
Return Loss
|
≥60 dB
|
≥60 dB
|
NA
|
|||
|
Durability
|
≥500 times
|
≥500 times
|
≥500 times
|
|||
|
Operating Temperature
|
-40℃ ~ +80℃
|
-40℃ ~ +80℃
|
-40℃ ~ +80℃
|
|||
|
Test Wavelength
|
1310nm
|
1310nm
|
1310nm
|
|||
FAQ:
1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality.
2. What about the lead time?
A:Sample needs 3 to 5 days, mass production time needs 1-2 weeks
3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
4: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our formal products.
5: What is your quality control for your fiber optic product ?
1) Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2)Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
