원래 장소:
중국
인증:
CE Rohs SGS ISO
모델 번호:
LC 0.9 밀리미터 패치 코드
저희와 연락

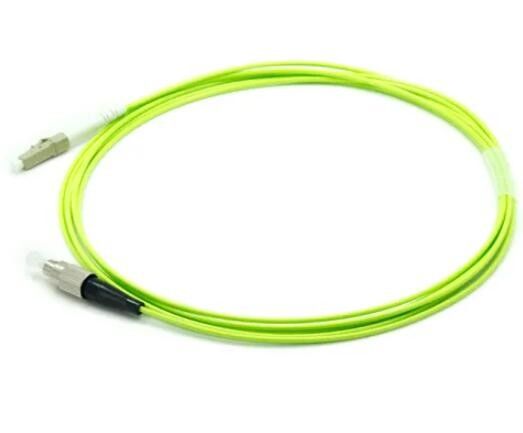

OEM 0.9mm Fc Fiber Optic Patch Cord LC / APC To FC / APC Round Wire Multi-Mode Jumper
Description:
The fiber optic patch cord is a length of optical cable with connectors fixed on two ends to realize the optical path active connection.
Pigtail is a length fiber cable with only one connector fixed on one end. If both sides of the connector or its end-face are
different, we call it hybrid patch cord. According to the transmission medium, it divides Single Mode
and Multi Mode; according to the connector structure type, it divides FC, SC, ST, MU, D4, E2000,
LC etc.; according to the polished ceramic end-face, it divides PC, UPC and APC.
Specification:
| Connector Type | Performance Level | |||||
| Standard | Elite | |||||
| connector | Mode | Endface | IL(db) | RL(db) | IL(db) | RL(db) |
| LC/SC/FC/ST | SM | PC | ≤0.2 | ≥50 | ≤0.15 | ≥50 |
| UPC | ≤0.2 | ≥55 | ≤0.15 | ≥55 | ||
| APC | ≤0.2 | ≥60 | ≤0.15 | ≥60 | ||
| MM | PC | ≤0.2 | ≥35 | ≤0.15 | ≥35 | |
| MPO/MTP | SM | APC | ≤0.7 | ≥60 | ≤0.35 | ≥60 |
| MM | PC | ≤0.5 | ≥20 | ≤0.35 | ≥20 | |
| MTRJ | SM | PC | ≤0.5 | ≥50 | / | / |
| MM | PC | ≤0.5 | ≥35 | / | / | |
Feature:
1.Frequency bandwidth,large communication capacity.
2.Low insertion loss, low return loss, long transmission distance.
3.No crosstalk interference, good confidentially.
4.Meet IEC, JIS, Bellcore international standard requirements.
